Application

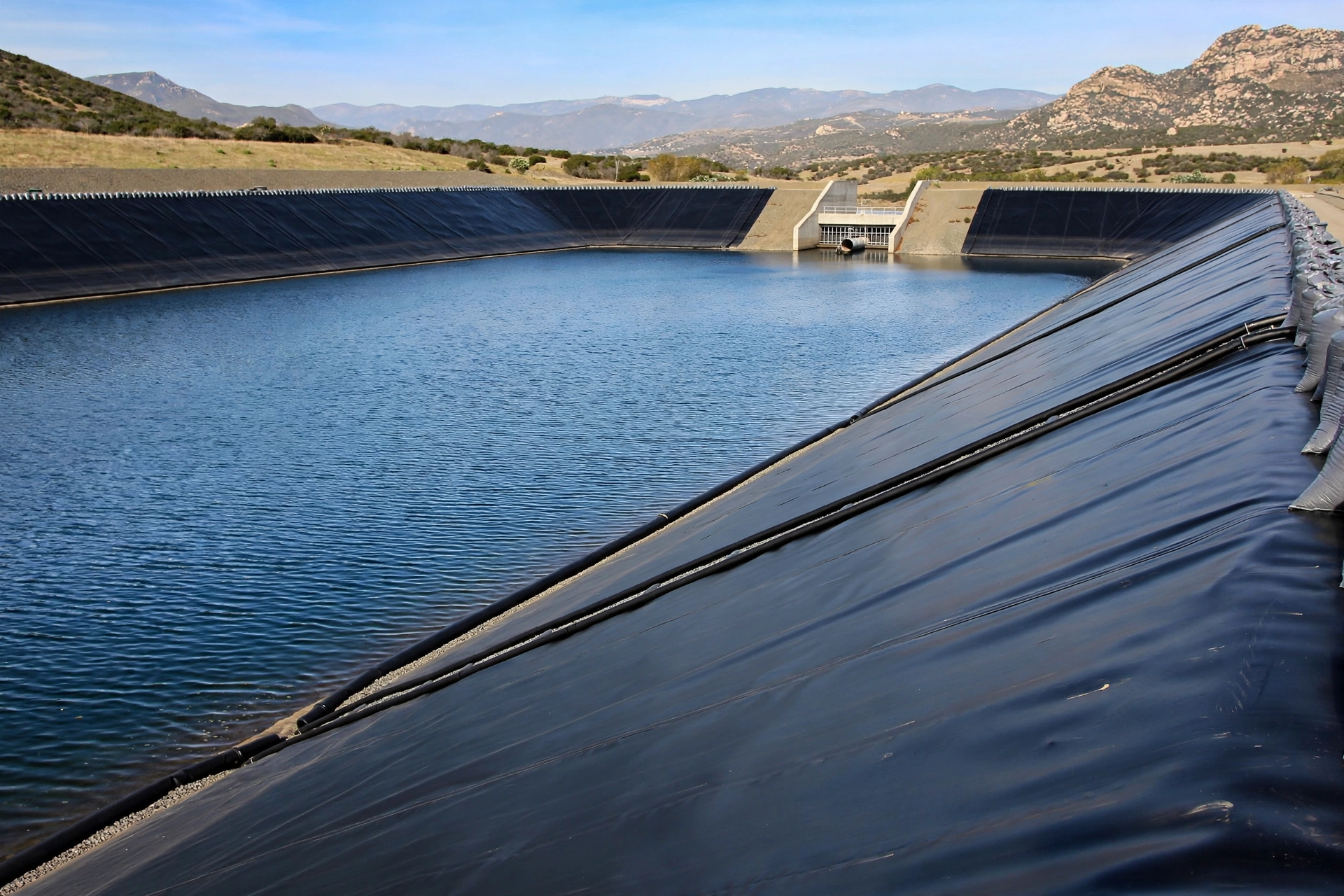

Water Containment
Reservoirs, irrigation canals, dams and ponds — stop seepage losses with a durable impermeable lining.
The engineering problem
Unlined reservoirs and canals lose large volumes to seepage; dams need reliable upstream facing. The lining must be watertight, UV-stable for exposed service, and installable in wide panels to keep seam counts low on big water surfaces.
- Smooth HDPE geomembrane — impermeable lining for reservoirs, canals and dams; UV-stabilized; 8 m widths suit large water areas
- PP filament geotextile — underlay protection cushion shielding the membrane from subgrade puncture
- PET staple geotextile — filtration behind dam facings and drainage outlets
Typical specifications
| Material | Available range |
|---|---|
| Smooth HDPE geomembrane | 0.5–3.0 mm, widths to 8 m, GRI-GM13 |
| PP filament geotextile | 50–1500 g/m², widths 2–6.5 m |
| PET staple geotextile | Needle-punched polyester, wide-width rolls |
Grade and thickness are selected per project design — send us your specification and we will match it.
Related products
Lining a reservoir, canal or pond?
Send your water surface area and subgrade details — we will size the liner and underlay package.
Request a Quote
